Helical Pile
BRIEF CASE FACTS
Client:
G.C.:
GrandLinq Contractors
Geotechnical:
EnGlobe Corp.
Structural:
Piles:
130 Chance Helical Piles
Loadings:
Compression Load: 289 kN (65 kips)
Challenges:
LRT Traction Power Substation
Waterloo, ON, Canada

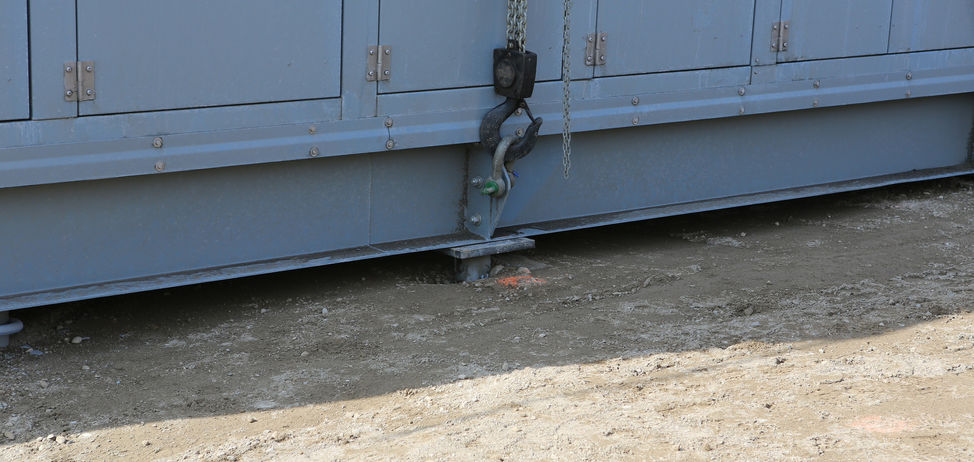

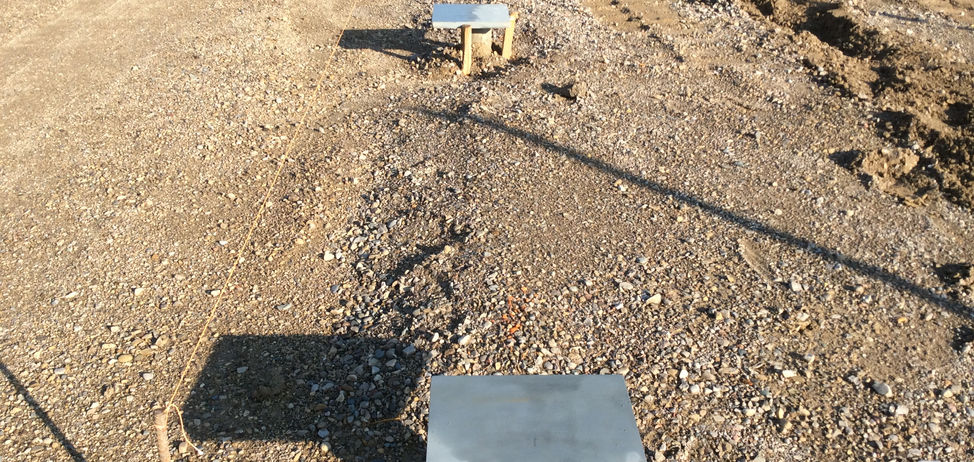

GrandLinq Contractors required a deep foundation system to support the traction power substation systems of the new LRT ION. The 13 substations weighed approximately 2900 kN each and came as one unit. Helical pile installations for each site were completed in one-day and took place across the Region of Waterloo in varying soil conditions
The units were originally designed to be supported on caissons but were redesigned with helical piles to accommodate a condensed construction schedule and immediate loading requirements. In total, the helical pile deep foundation systems saved the client 30 days.
Compression Load: 289 kN (65 kips)
Depth: 4 to 10 metres
Total Number of Piles: 130 CHANCE® Helical Piles
